Automatic ultrasound probe high-level disinfection (HLD) system

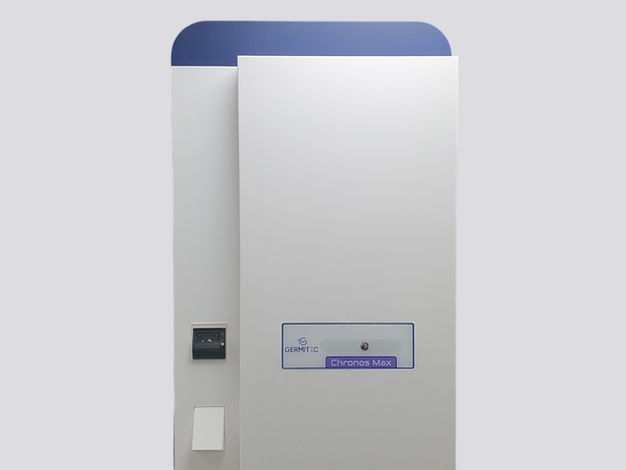

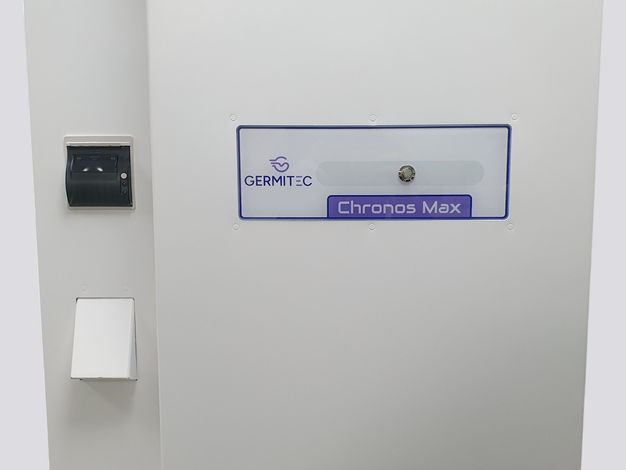

Chronos Max

In modern healthcare settings, efficiency and patient safety are inseparable. The Chronos Max offers a rapid, chemical-free solution for High-Level Disinfection (HLD), enabling medical devices to be safely reused without the need for rinsing, drying, or extended turnaround times.

Designed specifically for TEE probes, CMAC laryngoscopes, and ENT endoscopes without operating channels, the Chronos Max utilises advanced UV-C technology to deliver consistent, validated disinfection at the touch of a single button.

Its high-performance UV-C chamber ensures full 360° exposure, eliminating shadowed areas. Integrated photodiodes monitor and validate critical disinfection parameters, including UV-C dose, temperature, and exposure time, guaranteeing reliable and traceable results without the need for manual chemical indicators.

Chronos Max has demonstrated proven efficacy against a broad spectrum of pathogens, including bacteria, yeasts, fungi, mycobacteria, spores, and viruses such as HPV and HIV. Depending on the microorganism, it achieves microbial reduction levels between 4-Log₁₀ (99.99%) and 6-Log₁₀ (99.9999%).

ChronoMaxBleu.328 (1).png

Product code: AE1

Scroll down to learn more

Image_fx - 2025-07-16T102927.868.png
Image_fx - 2025-07-07T112150.957.jpg

Fast, reliable disinfection in just 4 minutes

Chronos Max delivers a fast, fully automated high-level disinfection (HLD) cycle in 4 minutes, reducing the risk of human error and ensuring consistent results. Using advanced UV-C technology, it provides integral disinfection of the entire device, including the active tip, cable, and connector, with proven efficacy against HIV, HPV, staphylococci, and enterococci. Probes are immediately ready for reuse after the cycle, no rinsing, wiping, or drying needed.

Complete traceability is guaranteed through Germitrac embedded software, which records operator ID, device detection, and prints automatic labels.

Chronos Max is compatible with the latest TEE probes, ENT endoscopes without operating channels, and CMAC laryngoscopes, making it a versatile 3-in-1 solution for ENT and cardiology and airway management.

Its chemical-free, low-energy operation makes it an environmentally responsible choice.

ChronoMaxBleu.328 (1).png

AE1 provides fully automated
disinfection, eliminating manual intervention and ensuring a standardized, safe process. With a 4-minute cycle time, it enables fast and efficient instrument turnover, delivering high-level disinfection with immediate readiness for use.

Automation and cycle time

Automation and cycle time

    Chronos Max provides fully automated disinfection, eliminating manual intervention and ensuring a standardized, safe process. With a 4-minute cycle time, it enables fast and efficient instrument turnover, delivering high-level disinfection with immediate readiness for use.

The AE1 device is suitable for disinfecting

TEE probes and ENT endoscopes (without an operative channel). This targeted device compatibility is especially well-suited to clinical areas where these types of instruments are regularly used.

Image_fx - 2025-07-07T100819-Photoroom (1).png

2-in-1 Compatibility

3-in-1 compatibility

        Chronos Max is suitable for disinfecting a wide range of medical instruments, including TEE probes, ENT endoscopes (without an operating channel), and CMAC laryngoscopes. Its broad compatibility enables healthcare facilities to safely process various instrument types using a single device, enhancing operational efficiency and improving return on investment.

Image_fx - 2025-07-07T100819-Photoroom (1).png

The AE1device features simple one-button
control, ensuring easy operation. Its user-friendly functionality makes it suitable for environments where fast and effective ultrasound probe disinfection is required.

Image_fx - 2025-07-07T100819-Photoroom (1).png

User-friendly design

Ergonomic, user-friendly design

           The Chronos Max has an ergonomic design with a single control button and a foot-pedal-operated door to avoid hand contact. Its larger UV-C chamber and wider door simplify instrument handling, speeding up workflow and reducing operator strain. The device runs at a noise level three times lower than the AE1, allowing placement even in patient rooms without disturbance.

Sustainable design and operation

        The development of the Chronos Max focused on long-term sustainability. It features a durable quartz hanger that is more resistant than conventional plastic, making it less vulnerable to UV exposure and reducing the need for frequent replacement. The device uses chemical-free UVC technology for disinfection, operating with low energy consumption. Its estimated recyclability rate is approximately 32% higher compared to the AE1.

The AE1 uses chemical-free UVC technology

for disinfection, operating with low energy consumption. Unlike the Chronos Max with its quartz hangers, the AE1 is equipped with plastic hangers that require periodic replacement.

Sustainable operation

The AE1 employs reliable RFID-based          device identification, ensuring that every disinfection cycle is documented and traceable. The system supports label printing using an external label printer. The software backend provides data archiving and subsequent retrieval, enabling the AE1 to meet traceability requirements in clinical environments.

Traceability

Complete Traceability

      The Chronos Max features an advanced identification and documentation system. The device can automatically recognize inserted instruments using RFID tags and also identifies the operator. Detailed and retrievable cycle documentation is generated, which can be printed as a label via the integrated label printer. The built-in GermiTrac software enables organized and secure archiving of cycle data, supporting institutional compliance and auditability.

Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png

ANTIGERMIX

CHRONOS MAX

CHRONOS MAX, THE NEW GENERATION

Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png
Image_fx - 2025-07-07T100819-Photoroom (1).png

The advantages of the Chronos Max

1. High-Level Disinfection

Chronos Max guarantees high-level disinfection, effectively eliminating bacteria, viruses, fungi, mycobacteria, and spores. This enhances patient safety by ensuring the highest standard of disinfection.

2. UV-C Technology

Chronos Max uses germicidal UV-C light to disinfect by damaging the DNA, RNA, and proteins of microorganisms like bacteria, viruses, fungi, mycobacteria, and spores, making them inactive. The system’s specially designed reflective chamber eliminates shadow areas, ensuring all surfaces receive full UV-C exposure for thorough disinfection. This advanced UV-C technology effectively kills harmful microbes, lowering the risk of infection transmission.

3. Time-Saving Operation

The disinfection cycle takes only four minutes, significantly reducing the time compared to traditional cleaning methods, thereby speeding up workflows.

4. User-Friendly Operation

Designed for simplicity, Chronos Max can be easily operated with minimal training, allowing healthcare staff to focus on other critical tasks. The Chronos Max has an ergonomic design with a single control button and a foot-pedal-operated door to avoid hand contact. Its larger UV-C chamber and wider door simplify instrument handling, speeding up workflow and reducing operator strain. The device runs at a noise level three times lower than the AE1, allowing placement even in patient rooms without disturbance.



5. Cost Efficiency

By eliminating the need for chemical disinfectants and reducing labor costs, Chronos Max provides a cost-effective solution for healthcare facilities.


6. Automatic Monitoring and Validation

Chronos Max features three photodiodes that continuously monitor and validate the disinfection process, ensuring that the high-level disinfection (HLD) cycle runs smoothly and that disinfection is complete. This advanced technology replaces manual verification, such as chemical indicators and test strips/

7. Versatile Applications

Chronos Max is suitable for disinfecting a wide range of medical instruments, including TEE probes, ENT endoscopes (without an operating channel), and CMAC laryngoscopes. Its broad compatibility enables healthcare facilities to safely process various instrument types using a single device, enhancing operational efficiency and improving return on investment.

8. Traceability

The Chronos Max features an advanced identification and documentation system. The device can automatically recognize inserted instruments using RFID tags and also identifies the operator. Detailed and retrievable cycle documentation is generated, which can be printed as a label via the integrated label printer. The built-in GermiTrac software enables organized and secure archiving of cycle data, supporting institutional compliance and auditability.

9. Sustainability

The development of the Chronos Max focused on long-term sustainability. It features a durable quartz hanger that is more resistant than conventional plastic, making it less vulnerable to UV exposure and reducing the need for frequent replacement. The device uses chemical-free UVC technology for disinfection, operating with low energy consumption. Its estimated recyclability rate is approximately 32% higher compared to the AE1.

image_fx_ - 2025-03-11T094017.769.jpg
